Brand Name : WANGDA
Model Number : JZK 70/60-4.0
Certification : ISO9001:2008 CE CQC BIS
Place of Origin : Zhengzhou,Henan,China
MOQ : 1 PC
Price : Negotiation
Supply Ability : 30 Sets Per Month
Delivery Time : 20-45 Days
Packaging Details : Standard Packing For Export
Production name : brick manufacturing machine
Material : Steel
Color : Green,Off-white
Production Capacity : 18000-22000 pcs/h
Reamer Diameter : 700-600 mm
Vacuum Degree : <-0.092
Moisture Content : 16-18%
Motor Power : Upper:Y6-75kw Lower:Y6-250kw
JZK 70 / 60 - 4.0 All Steel Fuselage Hard Plastic Extrusion Clay Automatic Brick Making Machine
Condition | New |
Processing | Brick Molding Machine |
Method | Vacuum Extruder |
Automatic | Yes |
Capacity | 18000-22000 pcs/h |
Place of Origin | Zhengzhou,Henan, China (Mainland) |
Brand Name | WANGDA |
Model Number | JZK70/60-4.0 |
Power | Upper:Y6-75kw Lower:Y6-250kw |
Certification | ISO9001:2008,CE,CQC,BIS |
Warranty | 12 Months |
After-sales Service Provided | Engineers available to service machinery overseas |
Color | As your request |
Application | Brick making machine |
Raw Material | Shale,clay,and others |
Name | Clay brick machine |
Product Name | Red brick machine |
Block Type | Solid Block |
Automatic | Fully automatic |
Brick Size | Any brick size is ok |
Brick Shape | Any shape is ok |
Technial Parameters
Type | Measuring Unit | JZK50/50-3.5 | JZK45/45-3.5 | JZK55/55-4.0 | JZK60/60-4.0 | JZK70/60-4.0 |
Production Capacity | Pcs/h | 12000-16000 | 10000-13000 | 16000-20000 | 16000-22000 | 18000-22000 |
Moisture Content | Percentage | 18-20% | 18-20% | 16-20% | 16-18% | 16-18% |
Reamer Diameter | mm | 500 | 450 | 550 | 600 | 700-600 |
Motor Power | Kw | Upper:Y250M-4-55Kw | Upper: Y225M-4-45Kw | Upper: Y250M-6-75Kw | Upper: Y6-75Kw | Upper: Y6-75Kw |
Lower:Y315S-6-160 | Lower : Y280S-4-132KW | Lower: Y315S-6-185Kw | Lower: Y6-250Kw | Lower: Y6-250 |
Whole brick making process
1. Material is put into box feeder to make sure continuous feeding.There is a reamer near the discharging
hole of box feeder.It can crash big block.
2. Then material is conveyed to roller crusher and crashed into powdery.
3. After that material is conveyed to double shaft mixer.Add water when mixing the material to make it more even.
4. Material is conveyed to brick vacuum extruder.The machine process the material and squeezes out mud strip.
5. Strip cutter cut the mud strip into equal length strip and convey them to cut adobe plate.
6. Adobe cutter cut the brick strip into green brick adobes.
7. Green bricks pass stoving and sintering processes become red brick.

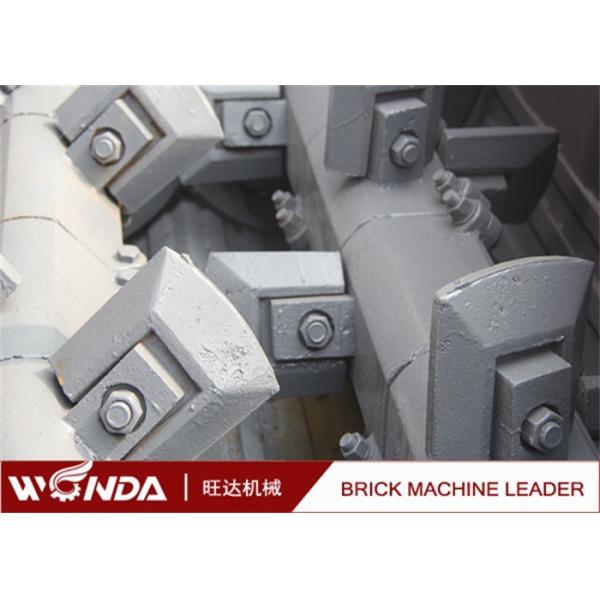

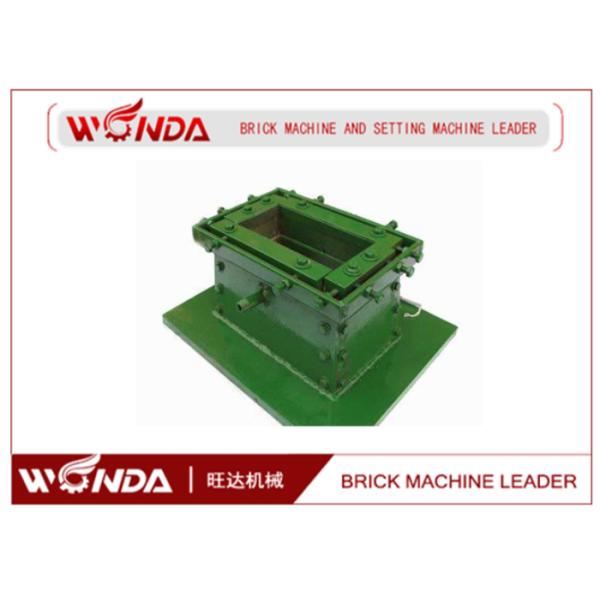

Product show
![]() |
Clay Automatic Brick Making Machine , Brick Manufacturing Equipment All Steel Fuselage Images |
